Steiner Circles

Project List First Page Previous Page Next Page

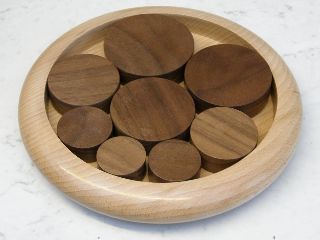

There are eight walnut discs of unequal sizes which fit into the beech dish. The sizes are calculated carefully

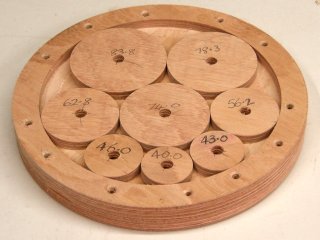

But first, a prototype is created in plywood. The dish is exactly 200.0 mm in diameter and the discs are a tight fit

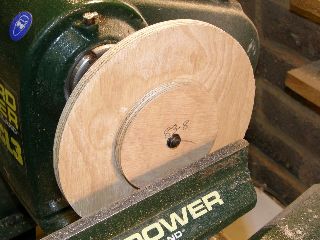

Each disc is made simply by mounting it on a screw chuck, with a plywood backing disc, and cutting it to the correct diameter (with a round skew)

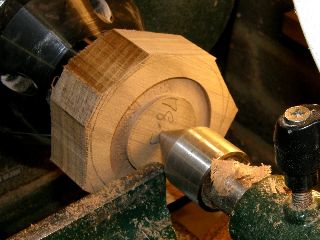

The walnut discs are from 40.0mm to 83.8mm, so slightly different techniques are needed to make each one. Start by cutting the blank roughly circular and making a spigot

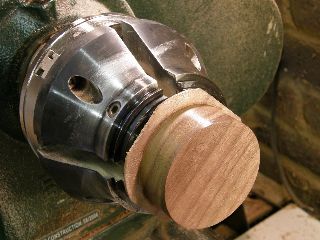

Reverse chuck, make a flat face and carefully cut to the correct diameter (checking with the vernier callipers)

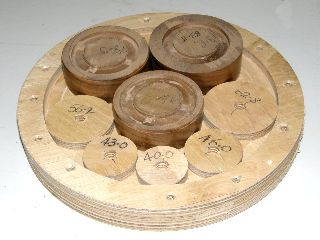

As each disc is completed, check it by insertion into the plywood prototype
