Simple Torus (continued)

Project List First Page Previous Page Next Page

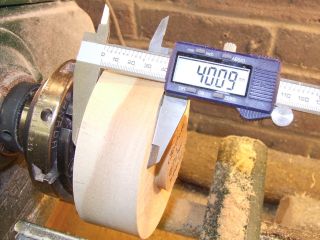

The thickness (apart from the two spigots) is reduced to 40mm

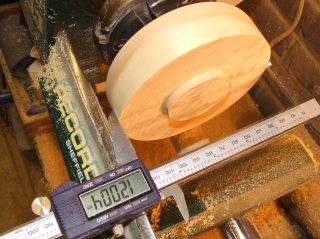

the diameter is reduced to 120mm

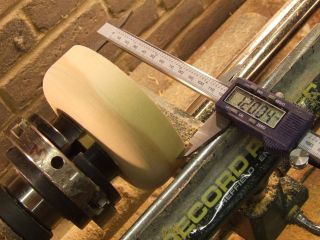

A quarter round profile is cut on one side, then the blank is reversed in the chuck

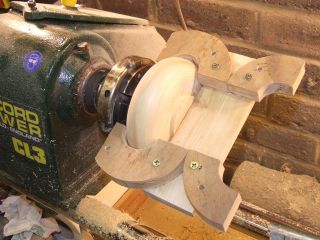

A second quarter profile is formed and checked for accuracy

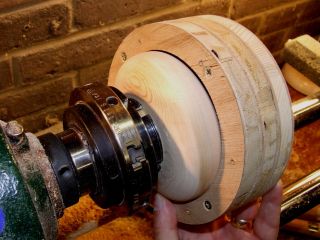

It is also checked for fit in the jam chuck holder (and sanded down if necessary)

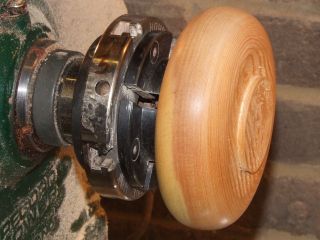

The external semi-circular profile is now complete. One spigot can be removed
