Caltrop (continued)

Project List First Page Previous Page Next Page

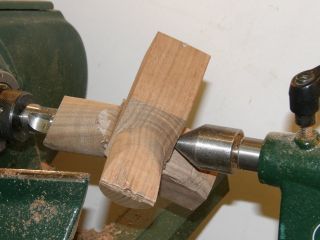

The blank is re-mounted on a new axis and the second leg is roughed out

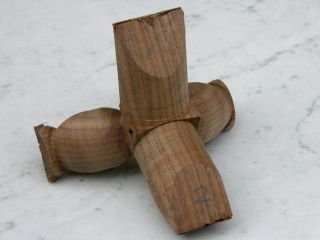

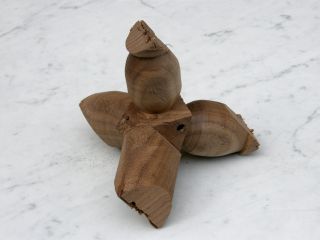

After the first round, the four legs are beginning to take shape

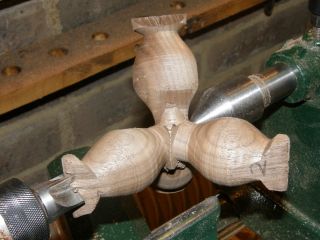

After the first two legs have been made cylindrical, some barrel shaping is done

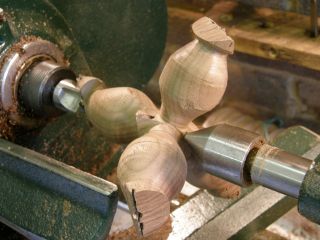

The process continues with progressive erosion of the central block

The four holes for the tailstock were drilled right through to the caltrop centre

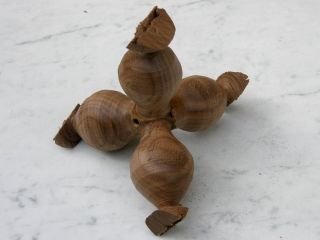

The four legs are now taking shape. The points can now be turned
